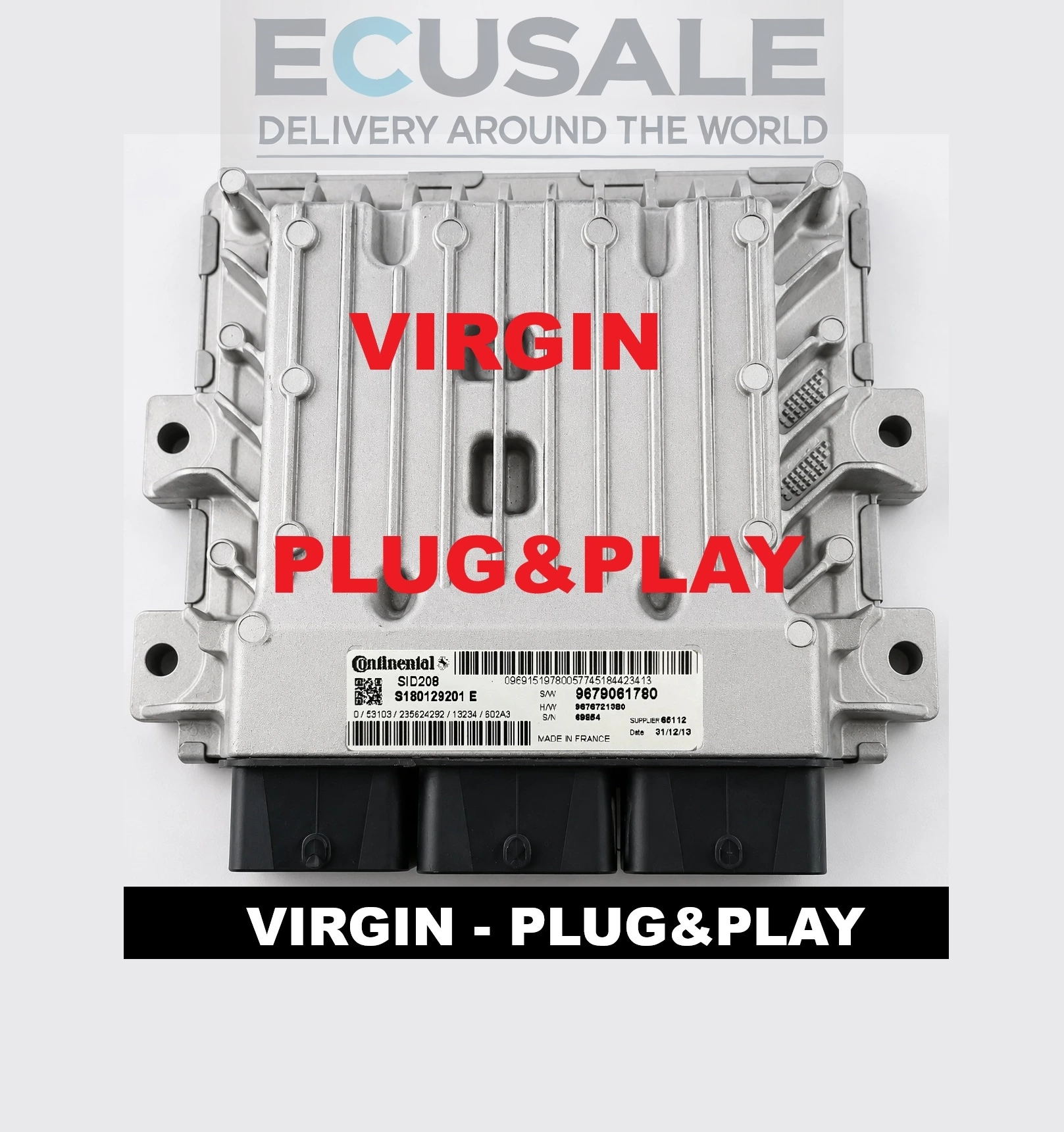

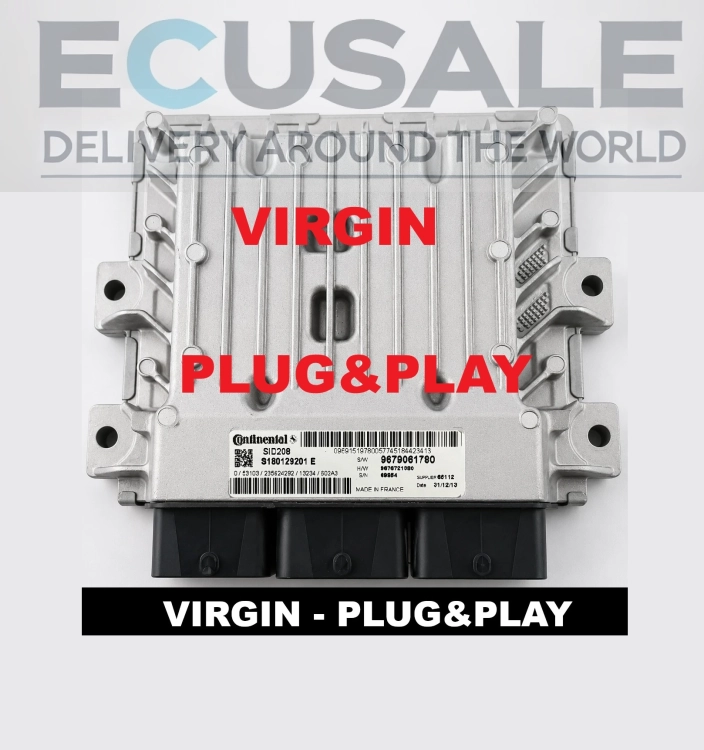

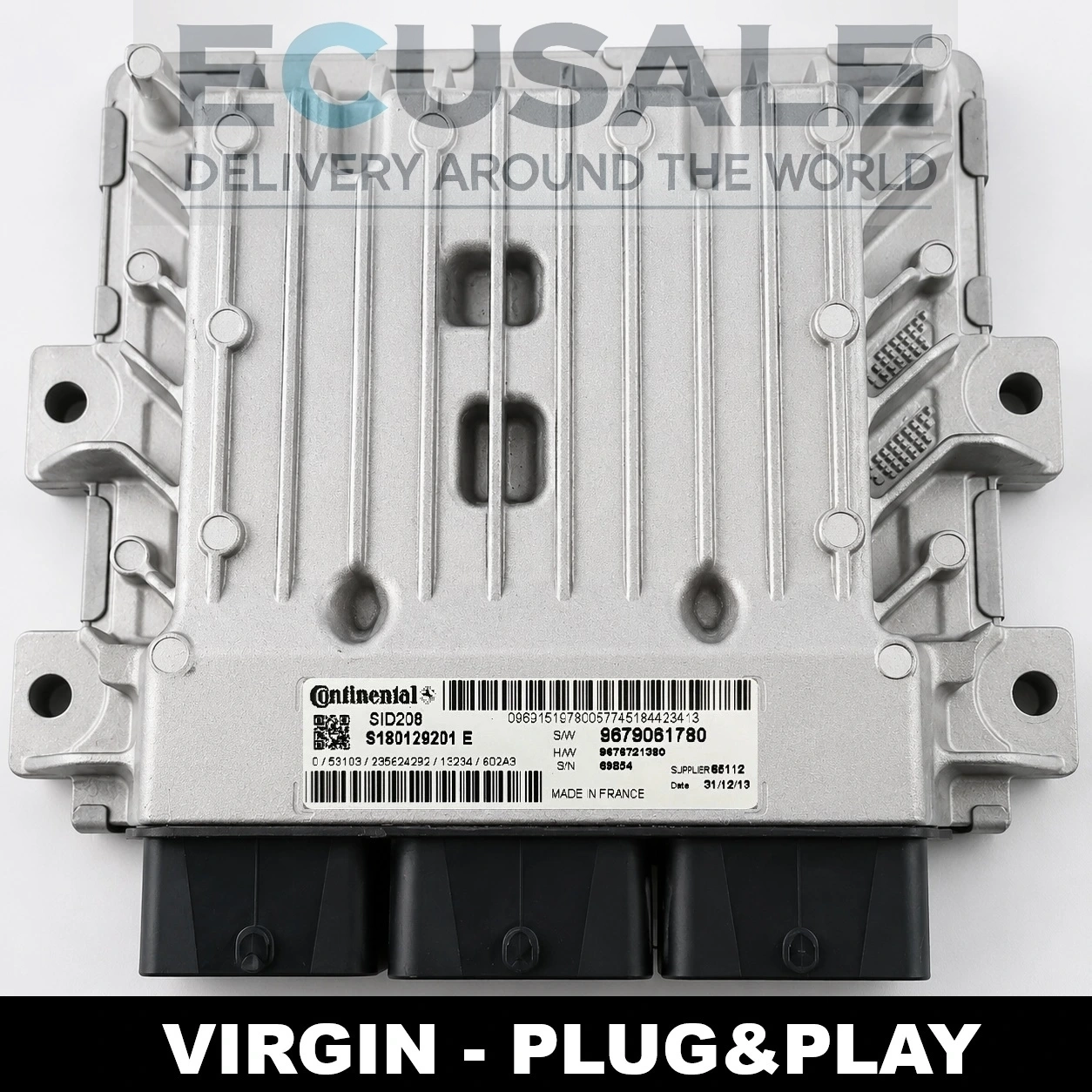

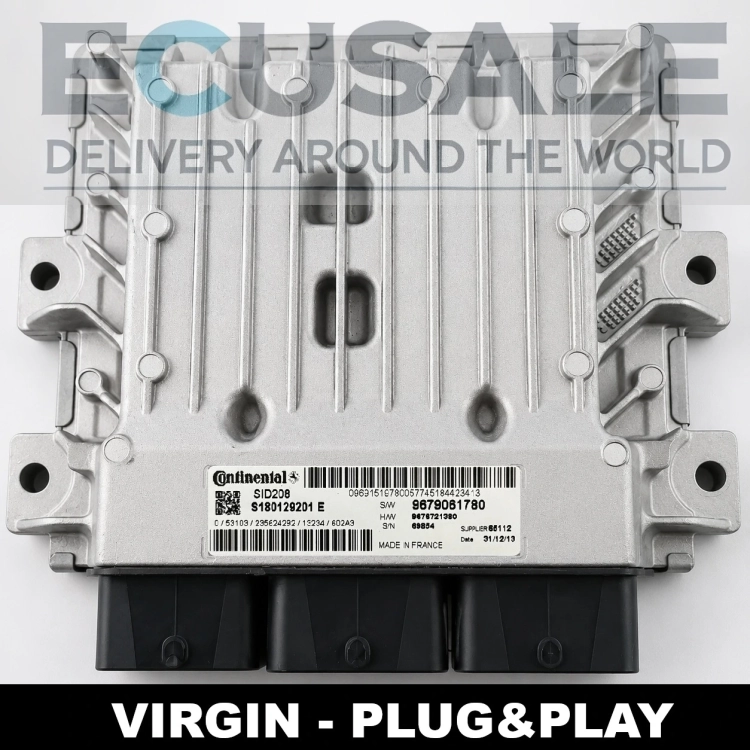

ECU S180129201E with software 9679061780
Virgin – programs itself
This ECU is a Virgin unit – it programs itself to the vehicle, with no coding, immobiliser programming or injector coding (condition: matching numbers and a working immobiliser). The electronics have never been repaired. We refurbished the housing and protected it against water, but it is not waterproof. Every unit is tested on the bench and in a vehicle.
On request: EGR OFF and DPF OFF. Warranty: 6 months. First installation is described in our guide SID208 Virgin ECU installation guide.
Air conditioning and gearbox – let us know
Please: after purchase tell us – air conditioning yes or no, gearbox manual or automatic. Number S180129201E comes in two versions depending on equipment, and this information lets us prepare the right one.
Most common cause of failure
SID208 units are most often damaged by water: a short circuit occurs on the injector side and the ECU stops sending the signal to the injectors, so the engine will not start. The housing of this unit is protected against water but is not waterproof – protect the ECU from flooding and make sure the water drains in the vehicle are clear. More in our articles Broken SID208 ECU – what to do? and SID208 – repair or replacement?.
Vehicle compatibility
The ECU is intended for Peugeot Boxer and Citroën Jumper 2.2 HDi. On the label of your old ECU find the Continental number and the S/W number – they must match character for character:
- Continental number: S180129201E
- Software number S/W: 9679061780
The remaining numbers do not affect the choice. Other SID208 units we have: S180129201G, S180129201K, S180129301B, S180129201C.
You will find other numbers in the Peugeot Engine Control Units (ECUs) category.
Questions and answers – ECU S180129201E
What do I need to tell you after buying S180129201E?
Whether the vehicle has air conditioning and whether the gearbox is manual or automatic – the software version depends on it.
|
Has S180129201E been repaired?
No. The electronics have never been repaired; the housing is refurbished and protected against water.
|
Is the S180129201E housing waterproof?
No. It is protected against water but not waterproof – protect the ECU from flooding and keep the water drains clear.
|
