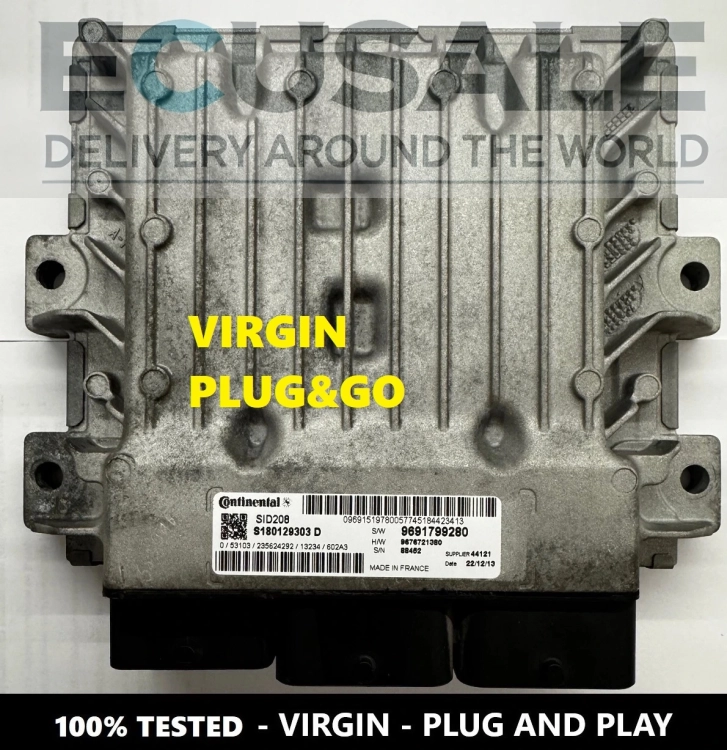

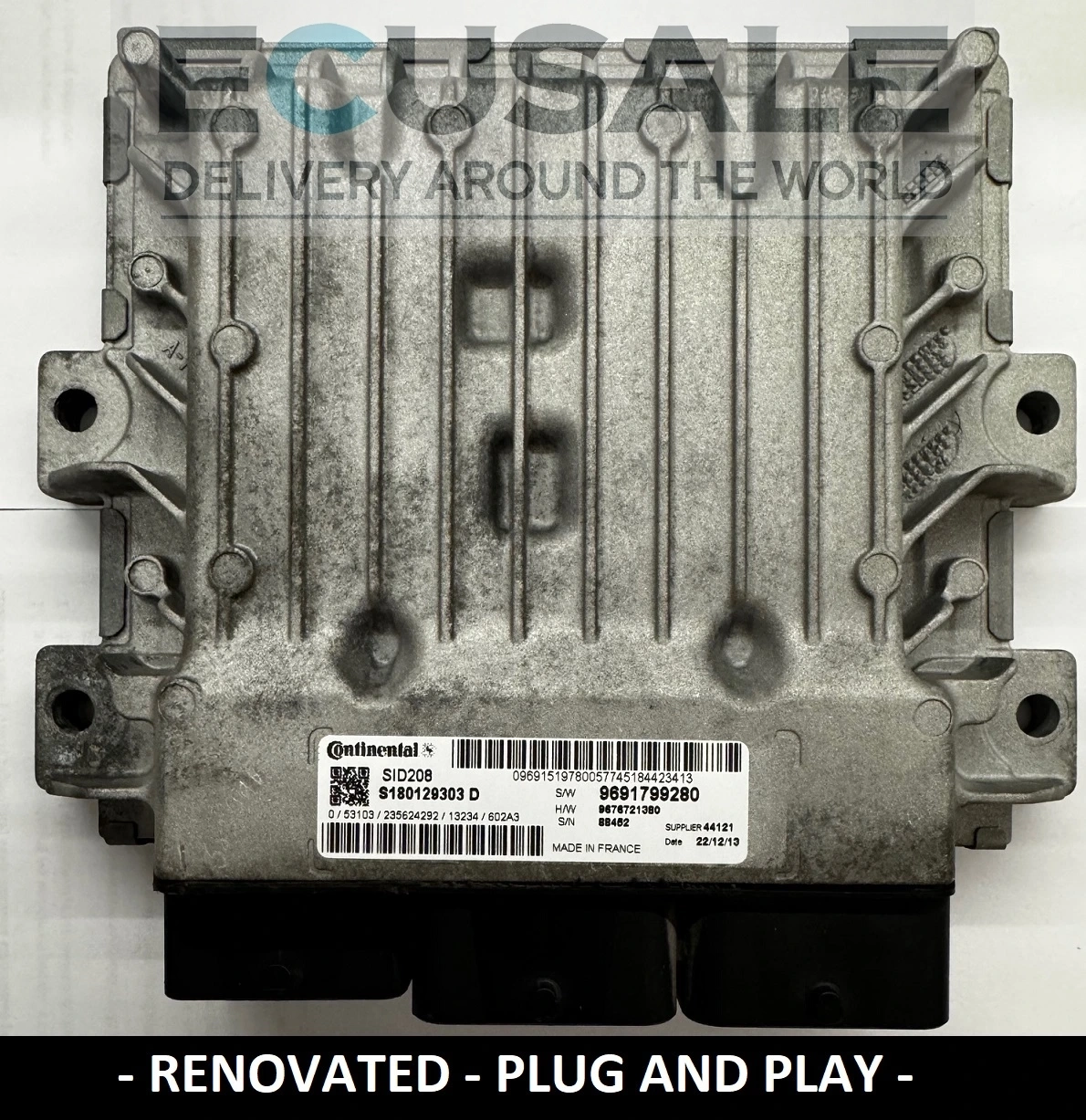

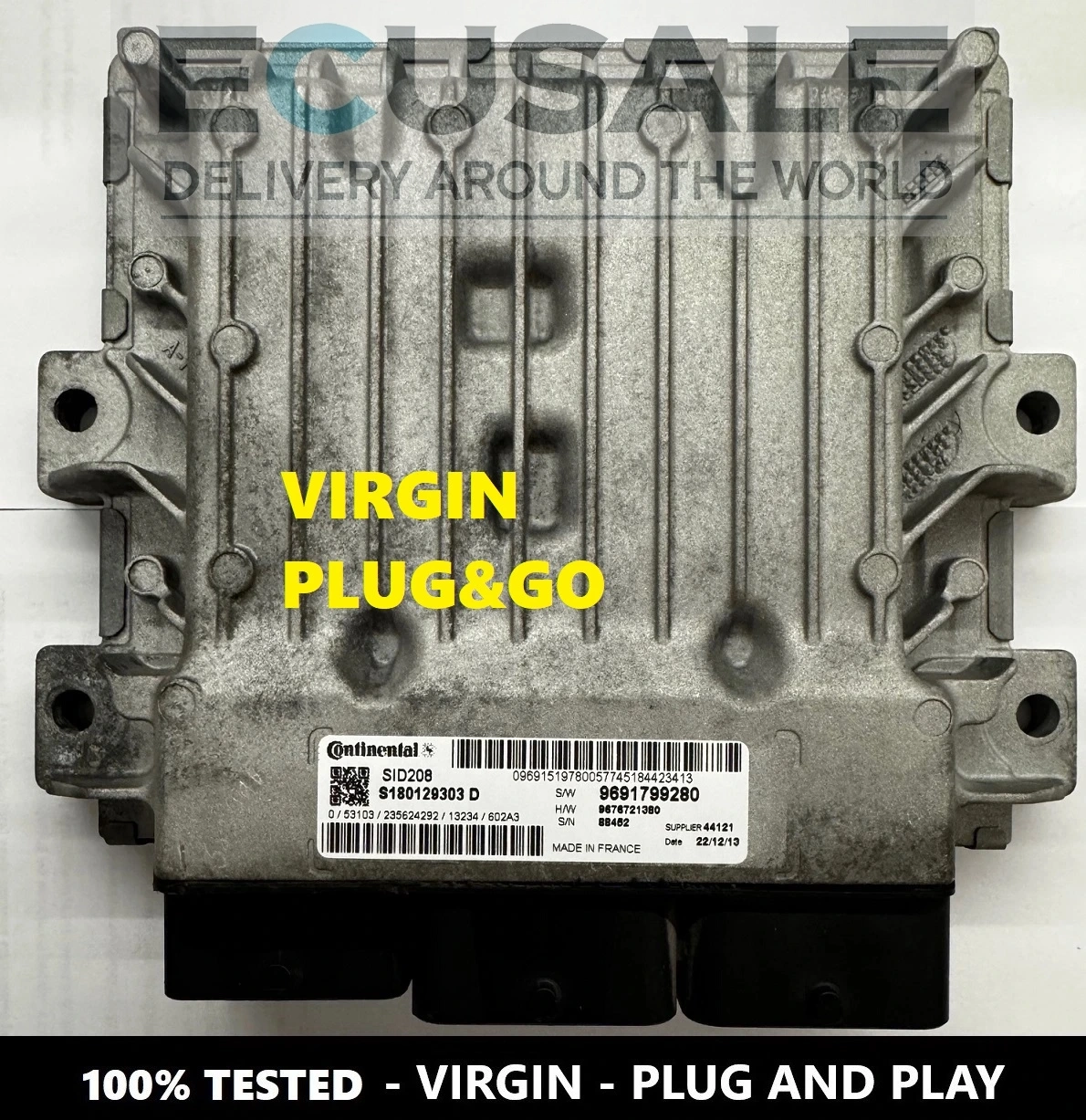

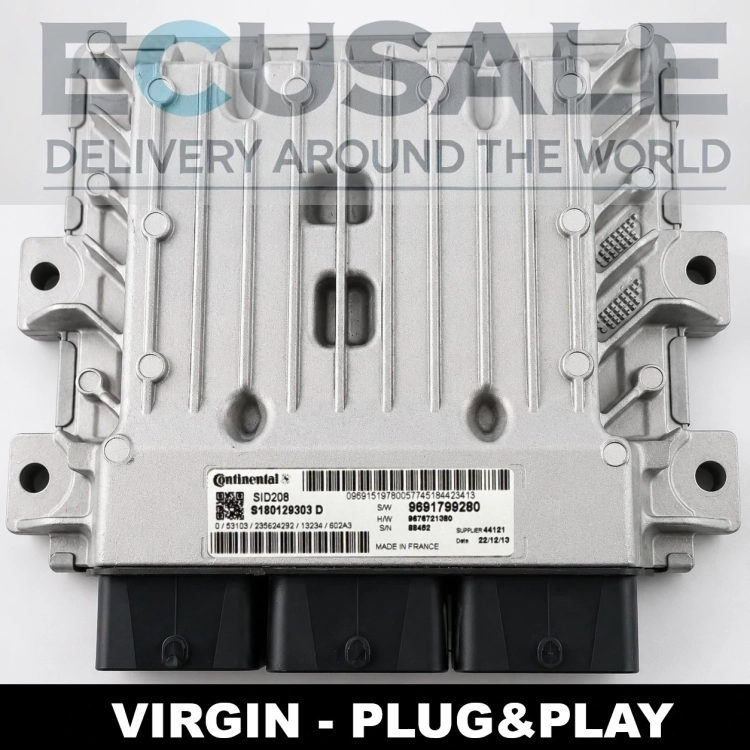

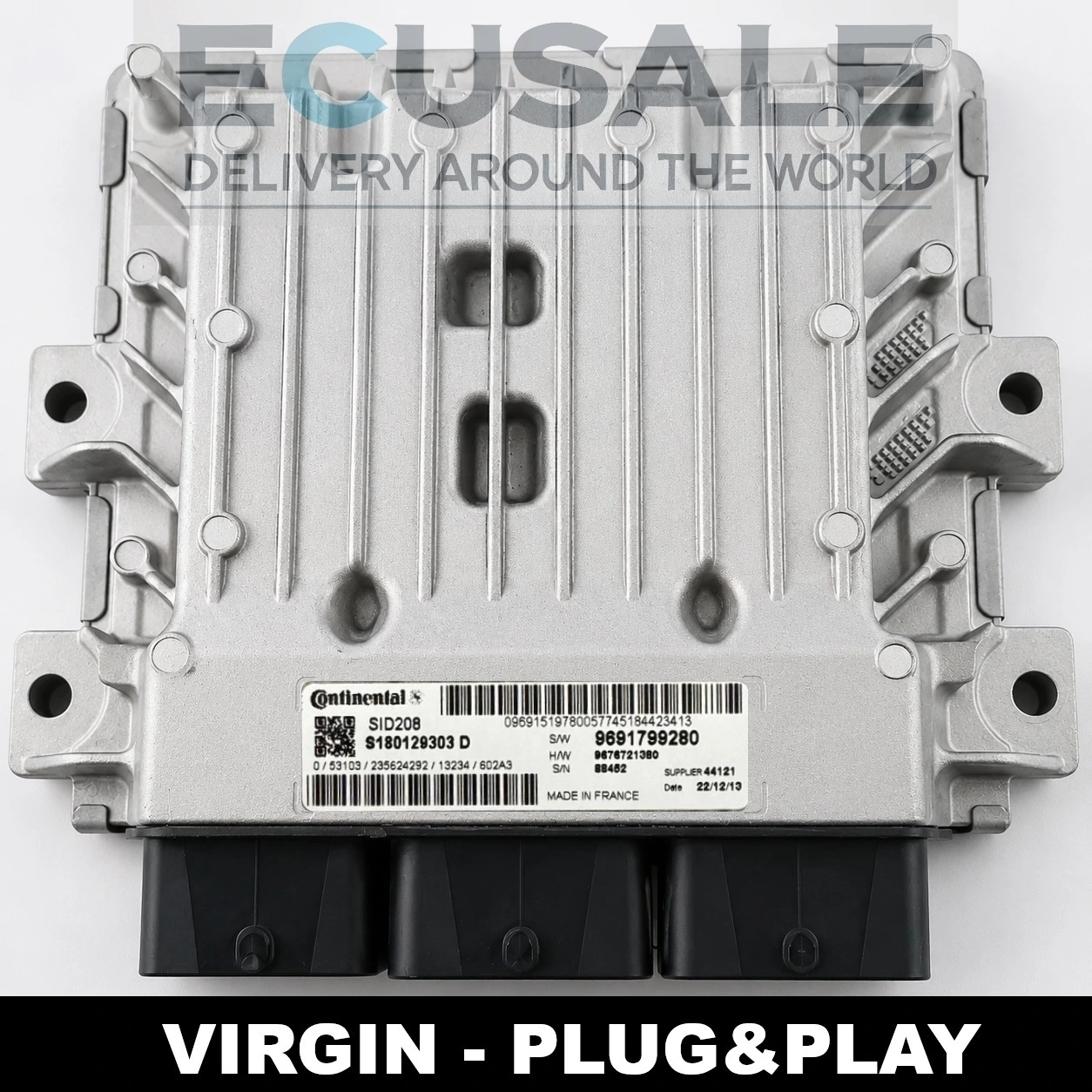

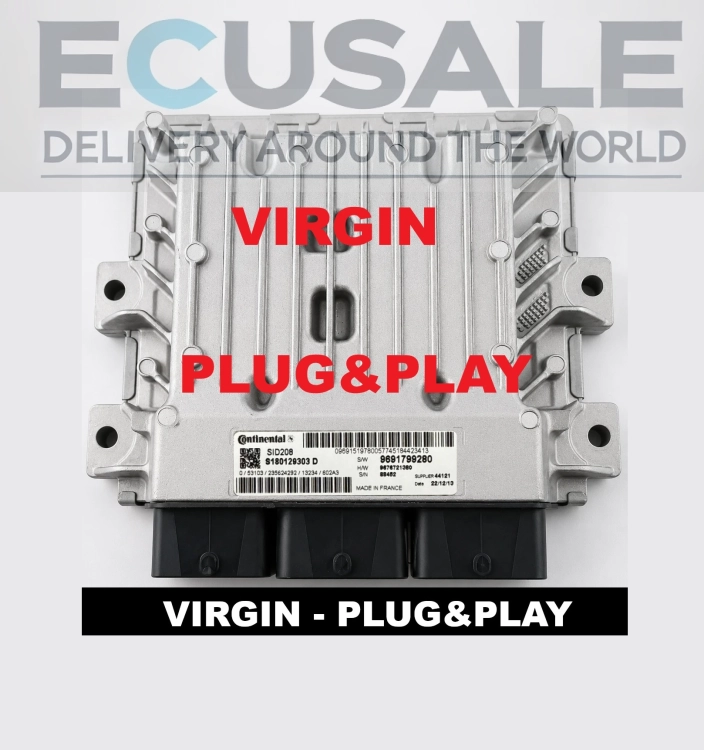

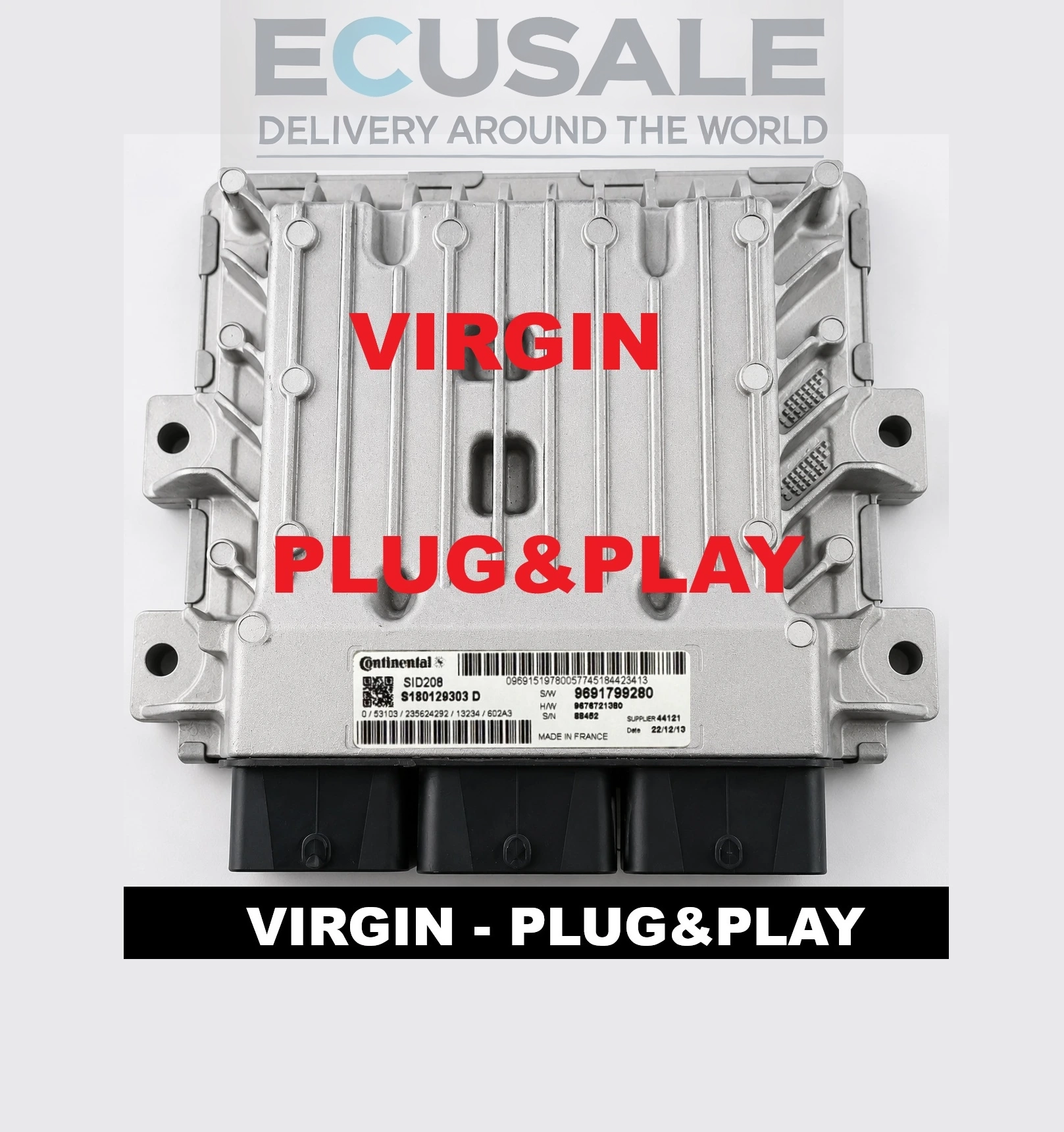

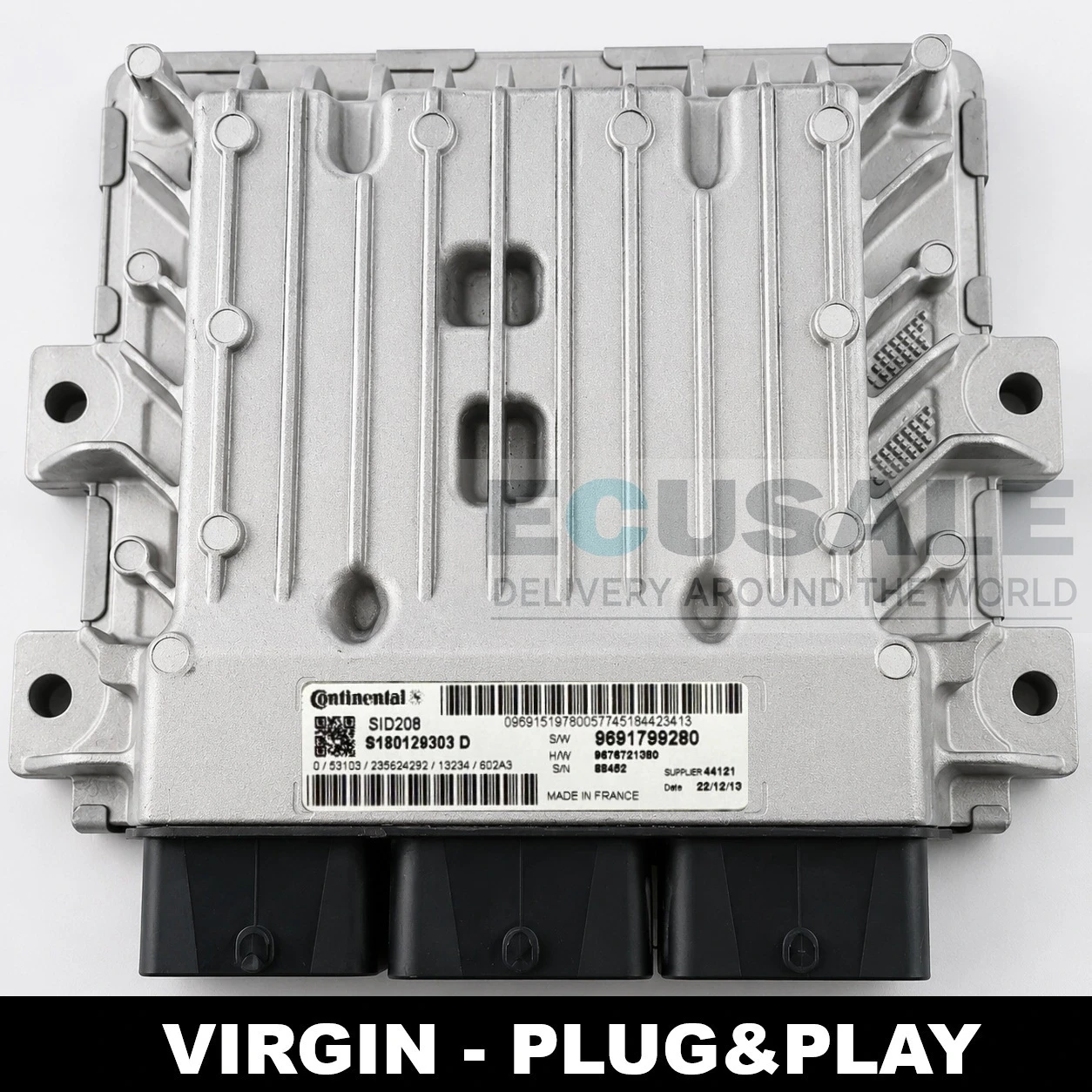

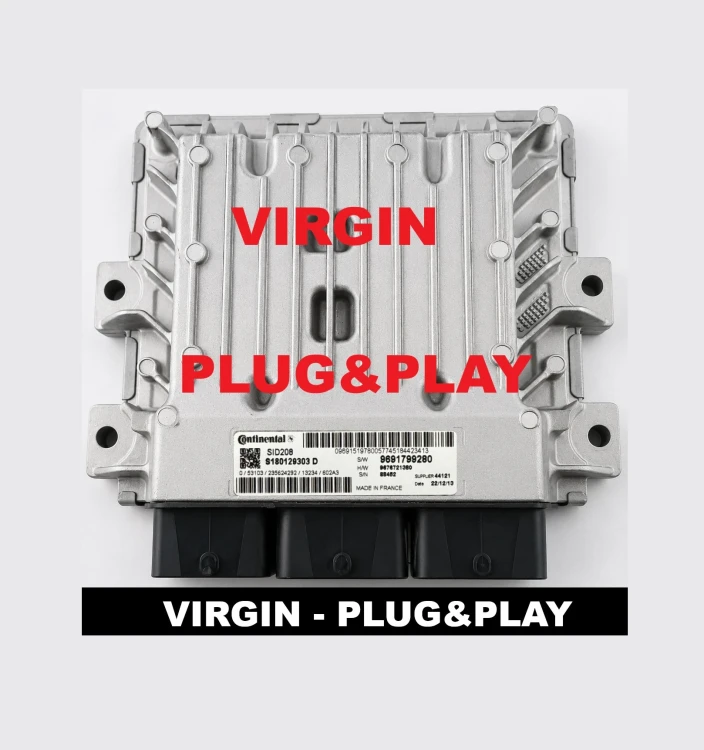

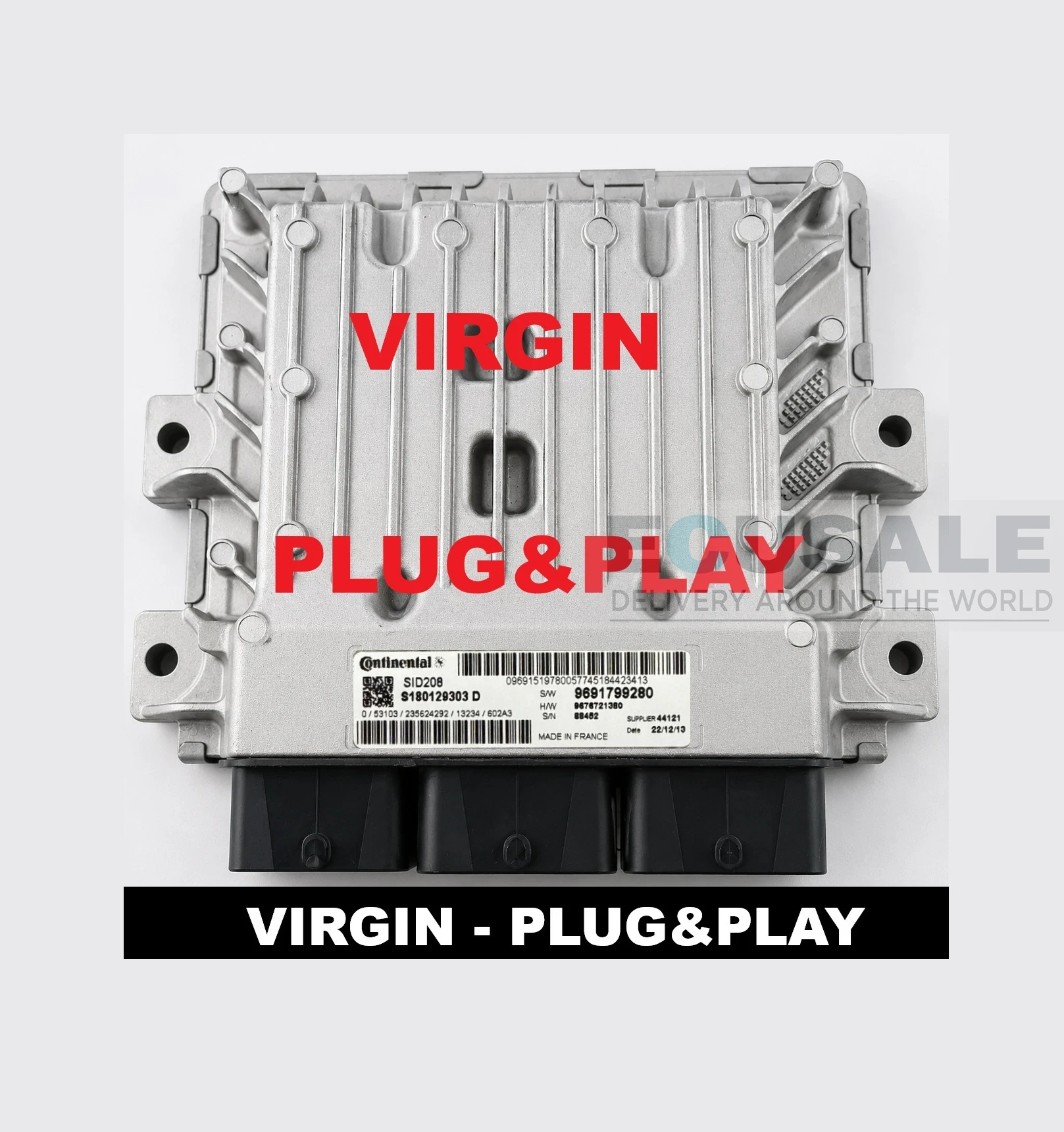

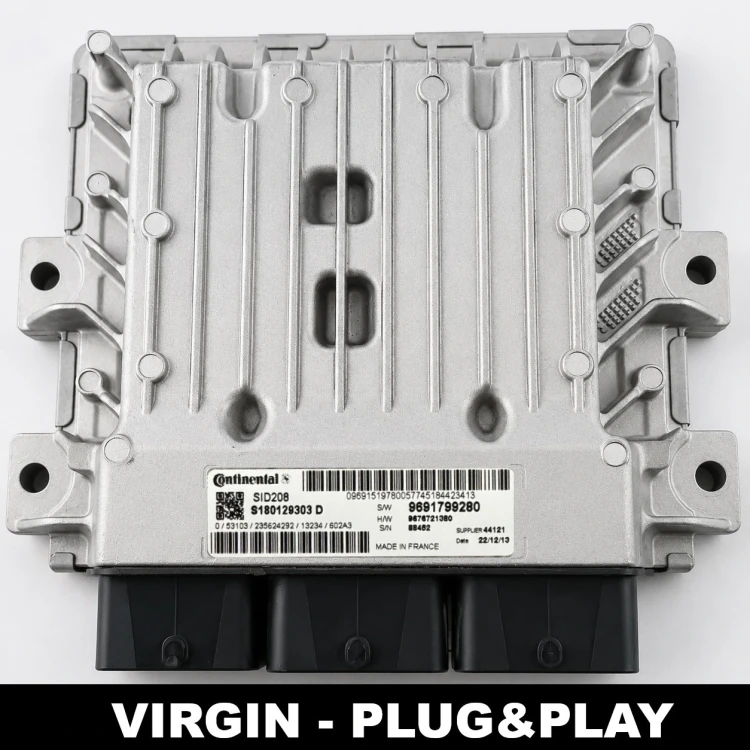

SID208 S180129303D – condition, matching and fitting
Most common cause of failure
The typical scenario: water ingress, a short circuit on the injector side and no injector signal. So that the new ECU does not share the fate of the old one, protect it from water and keep an eye on the drains in the vehicle – the housing is protected but not waterproof. Useful articles: Broken SID208 ECU – what to do?, SID208 – repair or replacement?.
Vehicle compatibility
The ECU is intended for Peugeot Boxer and Citroën Jumper 2.2 HDi. On the label of your old ECU find the Continental number and the S/W number – they must match character for character:
- Continental number: S180129303D
- Software number S/W: 9691799280
The remaining numbers do not affect the choice. Other SID208 units we have: S180129301B, S180129303C, S180129001D, S180129001G.
Important: information after purchase
All SID208 units share the same hardware, and engine power and displacement are the same – the software changes only because of equipment. That is why after ordering, send us whether the vehicle has air conditioning and which gearbox it has: manual or automatic.
How we prepared this unit
We sell it as Virgin: the ECU programs itself once connected – no coding and no pairing with the immobiliser, as long as the immobiliser works and the numbers match. It has never been repaired, and the refurbished housing is protected against water (which does not make it waterproof). Before shipping we test it on the bench and in a vehicle. The warranty is 6 months, and EGR OFF or DPF OFF can be done on request. The first installation is shown in our guide SID208 Virgin ECU installation guide.
See also the other items in the Peugeot Engine Control Units (ECUs) category.
FAQ: SID208 S180129303D
Will S180129303D fit with a software number other than 9691799280?
No. The Continental number S180129303D and the S/W number 9691799280 must be the same as on your ECU label.
|
Does the S180129303D ECU need programming?
No. It is a Virgin version – it programs itself to the vehicle once connected, with a working immobiliser.
|
Has S180129303D been repaired?
No. The electronics have never been repaired; the housing is refurbished and protected against water.
|
