Peugeot engine control units – tested ECU computers
A Peugeot engine control unit, also called the ECU or engine computer, is responsible for managing the engine. Based on information received from the sensors, it controls the fuel quantity, the injection system, ignition in petrol engines, boost pressure and selected parts of the emission control system, among other things.
The ECU also communicates with the BSI module, the immobiliser, the instrument cluster, the transmission control unit and other parts of the vehicle's electronics. For this reason, a used control unit from another car usually needs preparation before fitting.
At ECUSale we offer original, used and tested ECU engine control units for Peugeot cars. This category includes modules for models such as:
- Peugeot 206, 207 and 208,
- Peugeot 307 and 308,
- Peugeot 407 and 508,
- Peugeot Partner and Expert,
- Peugeot Boxer,
- other petrol and diesel models.
How to choose a Peugeot engine control unit?
Correct selection is based on the complete numbers on the label of the original ECU. The same model, year and engine may have used different hardware and software versions.
Before buying, check:
- the full control unit manufacturer number,
- the full PSA OEM number,

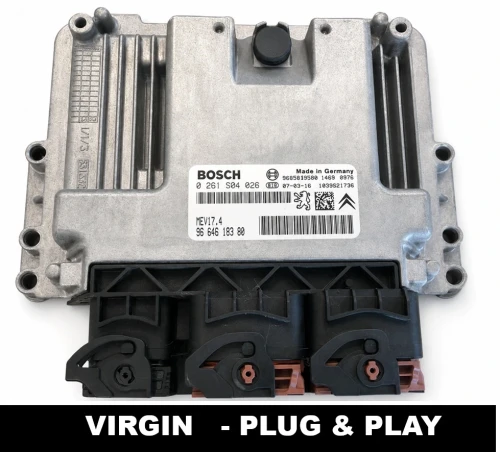

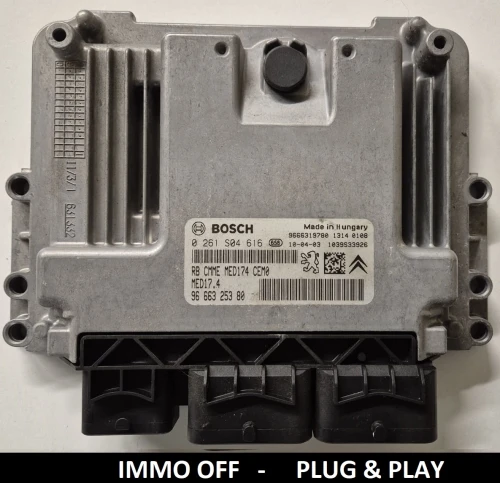

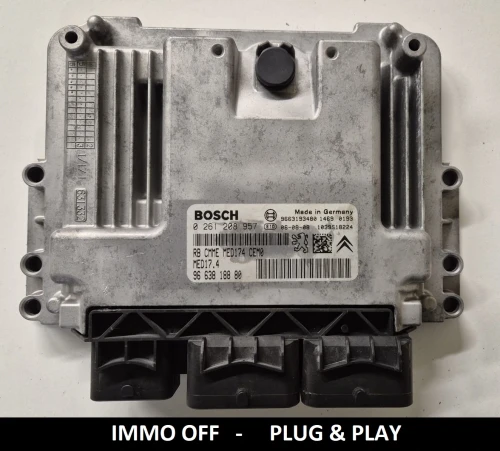

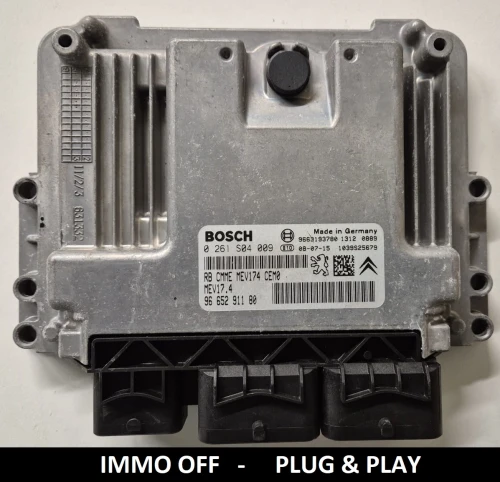

- the ECU family, e.g. SID208, EDC16, EDC17, MEV17.4 or MED17.4,
- the HW and SW markings, if present,
- the engine code, capacity and power,
- the gearbox type,
- the emission standard and the vehicle's equipment,
- the VIN as supporting information.
The VIN alone is not always enough to identify the control unit actually fitted in the car. The safest option is to send the VIN together with a clear photo of the whole ECU label.
Peugeot Boxer 2.2 HDi – Continental SID208 and Visteon control units
Depending on the version, the Peugeot Boxer 2.2 HDi uses Continental SID208 control units or Visteon modules. The SID208 units in our range are prepared as VIRGIN Plug & Play; you will find them in the collection of SID208 control units for Boxer and Jumper 2.2 HDi. We offer the Visteon modules as IMMO OFF; according to the product descriptions, they fit the Boxer, Jumper and Fiat Ducato 2.2.
Examples of available control units:
- SID208 S180129101J / 9691551980 – Boxer, Jumper 2.2 HDi, VIRGIN Plug & Play
- SID208 S180129301B / 9679009380 – Boxer, Jumper 2.2 HDi, VIRGIN Plug & Play
- Visteon 9665066380 / 9661256980 – Boxer, Jumper, Ducato 2.2, IMMO OFF
- Visteon 9666089780 / 9666360280 – Boxer, Jumper, Ducato 2.2, IMMO OFF
Each of these modules should be chosen by the full numbers on the label of the old control unit. A similar housing or the same vehicle model does not guarantee matching software and equipment.
How does a SID208 VIRGIN work after the first fitting?
A SID208 VIRGIN control unit is cleared of the previous car's data and prepared for reassignment. After correct fitting and the first start, the ECU can take the immobiliser data from the BSI or BCM module and store it in its memory.
We describe the first start process and the key requirements in the guide: SID208 VIRGIN and Plug & Play – correct first fitting.
Before the first start, make sure that:
- the control unit has the right numbers and software,
- the BSI or BCM and the key come from the same car,
- the battery is charged and the voltage stays stable,
- the wiring and CAN communication are working,
- the fault that damaged the previous control unit has been fixed.
Depending on the car's equipment, after fitting it may be necessary to telecode selected functions such as air conditioning, cruise control, gearbox type or the Start-Stop system. The engine starting does not always mean the whole vehicle configuration is correct.
SID208 – repair, replacement or cloning?
SID208 control units can fail because of power supply problems, voltage surges, damaged CAN communication, failed programming or corrosion of the electronics. However, not every damaged module has to be replaced straight away.
Depending on the condition of the ECU, it may be possible to:
- repair the electronics,
- restore damaged software,
- read the data in bench or boot mode,
- clone the data to a working control unit,
- use a VIRGIN module,
- prepare a Plug & Play solution.
More information is in the guide: SID208 Boxer, Jumper and Ducato – repair or replace the control unit?.
Peugeot VIRGIN, IMMO OFF and Plug & Play control units
How the ECU is prepared depends on the control unit design and the needs of the specific car:
- VIRGIN – the previous vehicle's data is removed and the control unit is prepared for reassignment or first adaptation,
- IMMO OFF – the immobiliser lock is disabled in the control unit, if the design allows this modification,
- Plug & Play – the module is prepared in advance to work in a specific car,
- cloning – the data from the original ECU is transferred to a compatible replacement module.
Not every Peugeot control unit supports all of these solutions. Before buying, read the description of the specific product and check whether it needs programming, first adaptation, cloning or additional telecoding.
Cloning a Peugeot engine control unit
Cloning means transferring data from the original ECU to a second, compatible module. Depending on the control unit design, the contents of the EEPROM, FLASH, the processor or other areas holding the car's configuration may be copied.
If the read is complete and the replacement unit is hardware-compatible, the cloned module can keep the immobiliser data, VIN, software and configuration of the original vehicle.
Cloning is not always possible. If the processor or memory of the old ECU is seriously damaged, a better solution may be a VIRGIN control unit or programming in the car.
Peugeot engine control unit manufacturers
Peugeot cars use modules from several manufacturers. ECUSale offers, among others:
The range also includes Delphi, Siemens and Magneti Marelli modules. The control unit manufacturer matters, but it does not replace comparing the full part numbers.
Most common symptoms of a faulty Peugeot ECU
- the car does not start or starts irregularly,
- the engine cuts out while driving,
- no diagnostic communication with the control unit,
- limp mode and reduced power,
- injector or fuel pressure control faults,
- turbocharger control problems,
- immobiliser faults or faults in communication with the BSI,
- CAN communication faults,
- problems after failed programming,
- damage caused by water, a short circuit or a voltage surge.
These symptoms can also be caused by a fault in the wiring, sensors, actuators, power supply or the BSI module. Before replacing the ECU, the car should be fully diagnosed.
What to check before fitting another ECU?
Before fitting a replacement control unit, check:
- the ECU power supply and ground points,
- fuses and relays,
- the wiring harness and the control unit connectors,
- CAN communication between the ECU and the BSI,
- the alternator charging voltage,
- actuators that may have caused a short circuit,
- signs of water, moisture, oil or corrosion.
An undetected fault in the car can damage the next control unit or cause the same problems after replacement.
Help choosing a Peugeot control unit
If you are not sure which ECU is right, send us a clear photo of the whole label of the old control unit, the VIN, the car model, year of manufacture, engine code, and details of the gearbox and equipment.
Based on this, we can check that the numbers match and tell you whether the right solution is a VIRGIN, IMMO OFF or Plug & Play control unit, a module for programming, or data cloning.
Before ordering, also check the delivery times and costs and the available payment methods.
Can't find your number?
Send us a photo of the whole label of the original part, the VIN and the car model. We will check compatibility and availability.
Ask about a part →
FAQ – Peugeot engine control units
Does a used Peugeot control unit work after plugging it in?
An ordinary used ECU usually contains the previous vehicle's data and may need cloning, programming or adaptation. Only suitably prepared control units, for example IMMO OFF or Plug & Play, can work without extra steps, provided the numbers match.
How do I choose the right Peugeot engine control unit?
The most important step is comparing the full manufacturer number and the PSA number from the label of the old ECU. Also check the control unit family, HW and SW version, engine code, gearbox and vehicle equipment.
Does a SID208 VIRGIN work straight after fitting?
A correctly prepared and compatible SID208 VIRGIN can take the immobiliser data from the BSI or BCM at the first start. Depending on the car's configuration, additional telecoding of the equipment may still be needed.
Can a Continental SID208 be swapped for a Visteon unit?
Do not assume they are interchangeable based only on the SID208 name or the look of the housing. The numbers, hardware, software and vehicle configuration must be verified. The wrong version may not start the car or may cause problems with the equipment.
What is the difference between VIRGIN and IMMO OFF?
A VIRGIN control unit is cleared of the previous vehicle's data and intended for new adaptation. IMMO OFF means the immobiliser start lock is disabled in the ECU. These are two different ways of preparing a control unit.
Can a Peugeot control unit be cloned?
On many designs it can. You need a complete read of the original ECU and a compatible replacement module. Whether cloning is possible depends on the type of control unit and how badly it is damaged.
Can a control unit be chosen by VIN alone?
The VIN helps verify the vehicle's factory configuration, but the numbers on the control unit label matter most. The safest option is to send the VIN together with a photo of the whole ECU.
Is Diagbox needed after replacing the control unit?
It depends on the ECU variant and the car model. Diagbox may be needed for diagnostics, telecoding, adaptation or equipment configuration. A control unit prepared as Plug & Play or IMMO OFF may not need the standard immobiliser adaptation, but the configuration may still need checking.
